Yamaguchi WB06DHLA Track Barrow

The walk-behind pedestrian controlled Yamaguchi Track Barrow WB06DHLA has a similar undercarriage design to the WB06Dba only it’s narrower, so that it will fit through a 735mm doorway.

Benefits of the TrackBarrow WB06DHLA

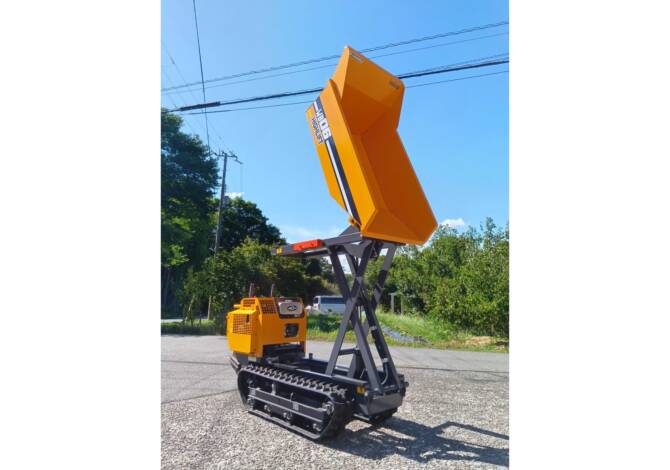

  • Tipping the load into a skip or high sided vehicle is very easy by simply operating a lever to hydraulically raise the load to over 1.3 metres.
  • Durability was designed into the WB06DHLA

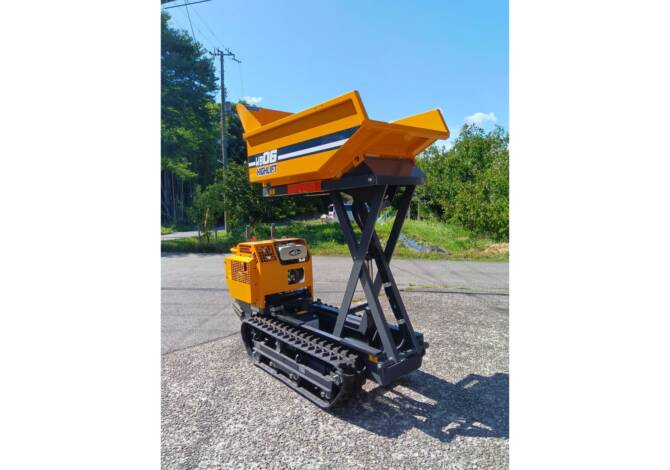

  • The hydraulic lifting and tipping cylinders are protected inside the scissor lift frame.
  • The steep 70 degree tipping angle makes sure that even sticky clay cleanly ejects.
  • The Kubota powered carrier has a choice of manual or electric key starting.
  • It is easy to operate, and safer than wobbling around on one wheel when trying to push a weighted barrow up a greasy slope.

The Contractor’s Choice

Many contractors choose the dependable Yamaguchi WB06DHLA track barrow to work alongside a micro excavator on smaller projects, like footings, patios, conservatories, and paths.

If you have any questions about the Yamaguchi Track Barrow, then please get in touch.

To make an enquiry call Colchester:
+44 (0)1206 273111
Bolton:
+44 (0)1204 791122

Enquiry Form

  • Specifications
    • Make Yamaguchi
    • Model WB06DHLa
    • Payload 700 kg
    • Unladen Weight 465 kg
    • Maximum Speed 5.7 kph / 3.54
    • Engine Make and Model Kubota OC60
    • Engine Type Single cylinder air cooled diesel
    • Engine Power 4.4 kw / 5.98 hp
    • Ground Pressure Empty 14.68 kpa / 2.13 psi
    • Ground Clearance 125 mm
    • Fuel Type Diesel
    • Overall Length 1980 mm
    • Overall Width 725 mm
    • Overall Height 1090 mm
    • Track Centres 545 mm
    • Track Width 180 mm
    • Dump Body Length Internal 1250 mm
    • Dump Body Width Internal 650 mm
  • Downloads
