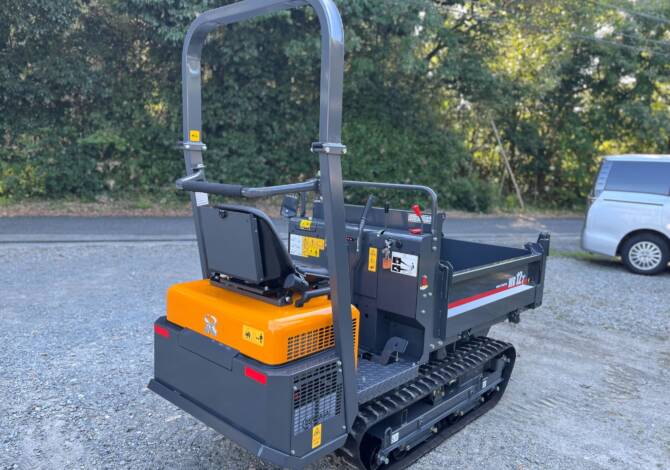

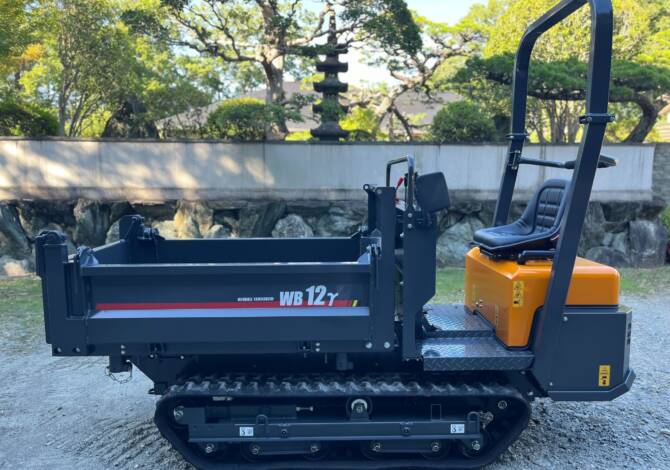

Yamaguchi WB12β Mini Crawler Tracked Dumper

All of the Yamaguchi mini crawler tracked dumpers provided by us, here at Cautrac, feature a heavy-duty rubber track with large diameter rollers and a positive tooth-drive engagement using a sprocket.

The dumper’s economical and efficient engine is a Kubota twin cylinder water cooled diesel power unit.  The transmission is hydrostatic and offers infinite speed variations in both forward and reverse through a foot pedal.

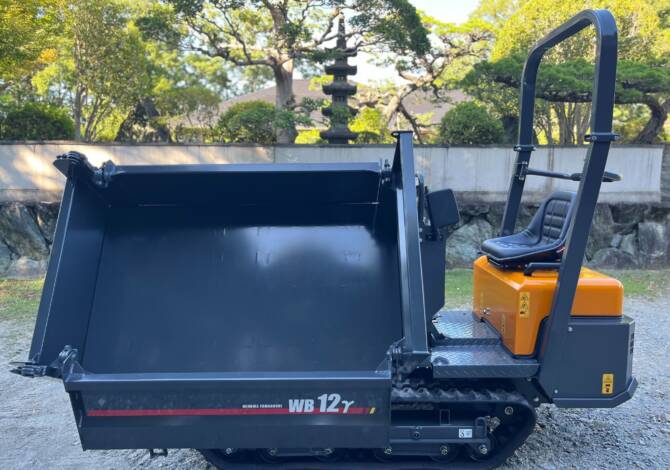

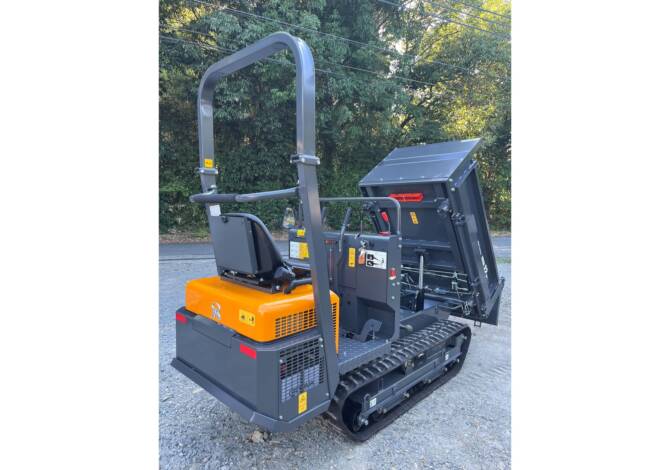

For ease of use and flexibility, the tracked dumper’s body tips three ways, presenting either left, right or forward tipping. Moreover, the sides and the corner posts can be removed to leave a flat deck platform for even greater flexibility of use.

For improved safety, the tracked dumper has an auto locking and unlocking feature on the opening sides. The locking engine compartment is a metal cover that folds rearwards and gives good access to carry out daily checks prior to operation.  Standard equipment includes a folding ROPS bar.

To find out more about this mini crawler from Yamaguchi, get in touch with us, we will be more than happy to answer any questions that you have.

To make an enquiry call Colchester:
+44 (0)1206 273111
Bolton:
+44 (0)1204 791122

Enquiry Form

  • Specifications
    • Make Yamaguchi
    • Model WB12β
    • Payload 1200 Kg
    • Unladen Weight 885 Kg
    • Maximum Speed 6.9 KPH / 4.28 MPH
    • Engine Make and Model Kubota - Z482
    • Engine Type Twin cylinder liquid cooled diesel
    • Engine Power 9.5 KW / 12.91 HP
    • Ground Pressure Empty 16.61 KPA / 2.41 PSI
    • Ground Clearance 145 mm
    • Fuel Type Diesel
    • Overall Length 2640 mm
    • Overall Width 950 mm
    • Overall Height 2015 mm
    • Track Centres 720 mm
    • Track Width 230 mm
    • Dump Body Length Internal 1470 mm
    • Dump Body Width Internal 855 mm
