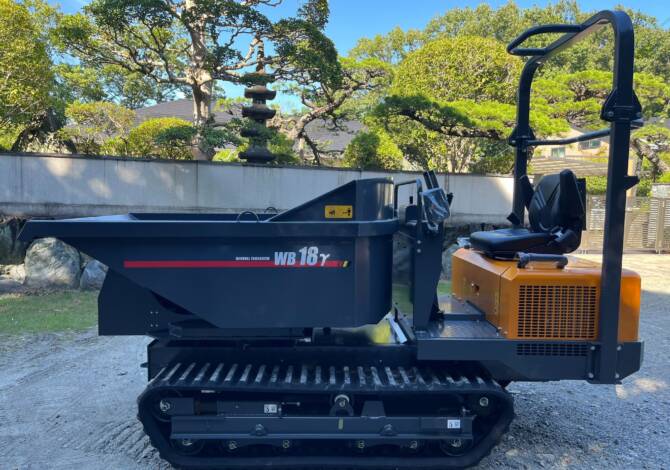

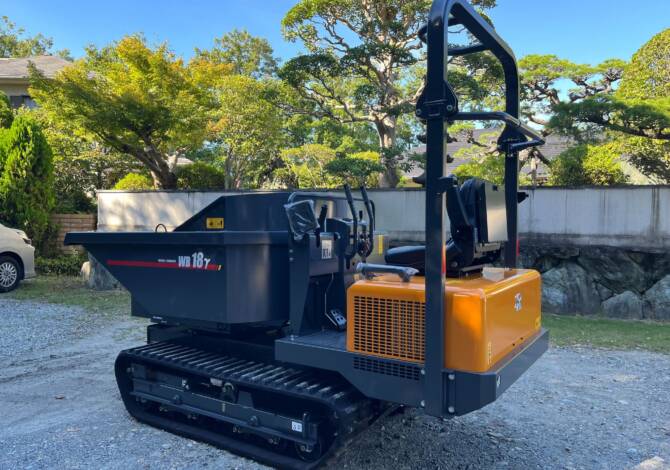

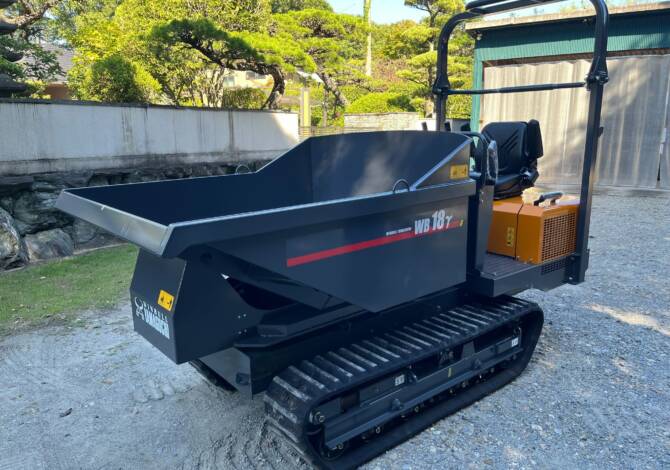

Yamaguchi WB18β-DTB

Benefits of the Yamaguchi WB18β – DTB Dumper

The Yamaguchi WB18β – DTB is a solid tracked dumper, with proven reliable technology including having low operating costs, low noise pollution, low maintenance, and low vibration. All of this, coupled with the tracked dumper’s peak performance, is possibly all you will ever need in a crawler carrier.

Furthermore, it is extremely easy to position the load accurately before discharging it.

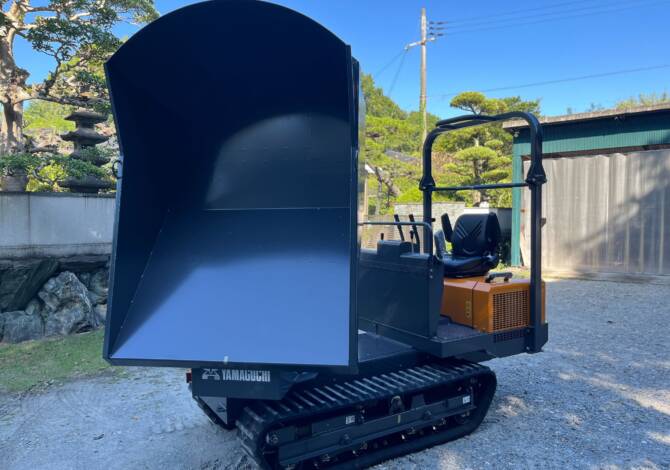

The WB18β – DTB tracked dumper features a 180-degree tipping body that can be discharged anywhere, within a quadrant angle of 180 degrees. This means you can save time and increase productivity and it also helps to protect the ground from additional shunting.

Safety Benefits of the Yamaguchi Dumper WB18β – DTB

The Yamaguchi dumper is very light on its tracks, meaning that there is less chance of trenches collapsing when driving close to them as is typical on many sites and this is a major safety issue for many wheeled dumpers.

A heavy-duty undercarriage with rocking beam rollers maximises the ground contact area, and the positive high-drive track is a durable alternative to wheels, providing very low ground pressure even when fully loaded. The ground pressure equates to approximately a third of a human footprint.


To make an enquiry call Colchester:
+44 (0)1206 273111
+44 (0)1204 791122

Enquiry Form

  • Specifications
    • Make Yamaguchi
    • Model WB18β
    • Payload 1800 Kg
    • Unladen Weight 1380 Kg
    • Maximum Speed 7.4 KPH / 4.59 MPH
    • Engine Make and Model Kubota - D902
    • Engine Type Three cylinder liquid cooled diesel
    • Engine Power 16.1 KW / 21.88 HP
    • Ground Pressure Empty 18.61 KPA / 2.70 PSI
    • Ground Clearance 195 mm
    • Fuel Type Diesel
    • Overall Length 3040 mm
    • Overall Width 1290 mm
    • Overall Height 2230 mm
    • Track Centres 950 mm
    • Track Width 280 mm
    • Dump Body Length Internal 1730 mm
    • Dump Body Width Internal 1220 mm
