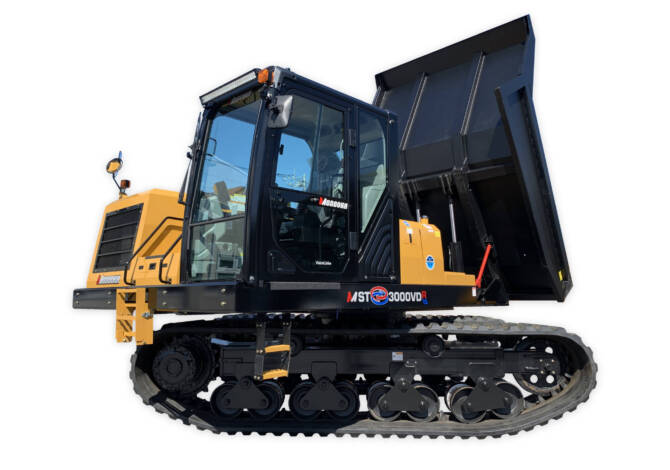

Morooka MST3000VDR Tracked Dumper

The Morooka MST3000VDR is the largest 360° rotator in Britain. It contains a CATERPILLAR STAGE V engine and carries up to a massive 15000KG payload.

The entire upper structure of the Morooka MST3000VDR can be rotated, making the excavation and transport of soil easier and efficient.

In the case of most tracked dumpers, once the operator reaches the departure point for the soil, the machine would need to turn with the full load. This movement can churn the ground up badly, and requires a huge surge of power. But with the MST3000VDR, this does not happen, because the unit can drive in either direction. This means valuable time, effort and money are saved.

Other benefits of a rotating upper structure include less wear and tear on tracks, and on the undercarriage roller.

Easy Access for Driving & Engine Checks

The operator can gain access through the large access panels, or via the front mounted step in order to get between the cabin and the engine bay – where all of the engine checks are carried out. These tasks include checking the oil level and cleaning the air filter. The fuel filling point, together with the hydraulic fluid filling points, are also located here – making access to this area extremely important.


To make an enquiry call Colchester:
+44 (0)1206 273111
+44 (0)1204 791122

Enquiry Form

  • Specifications
    • Make Morooka
    • Model MST3000VDR
    • Drive System HST
    • Engine CAT C7.1 ACERT
    • Fuel Tank 222
    • Machine Weight 16,800kg
    • Payload 15,000kg
    • Ground Pressure Empty kPa 69.5
    • Track Width 800
    • Travel Speed - Low 8.05
    • Travel Speed - High 12.07
    • Ground Clearance 565
    • Fuel Type Diesel
